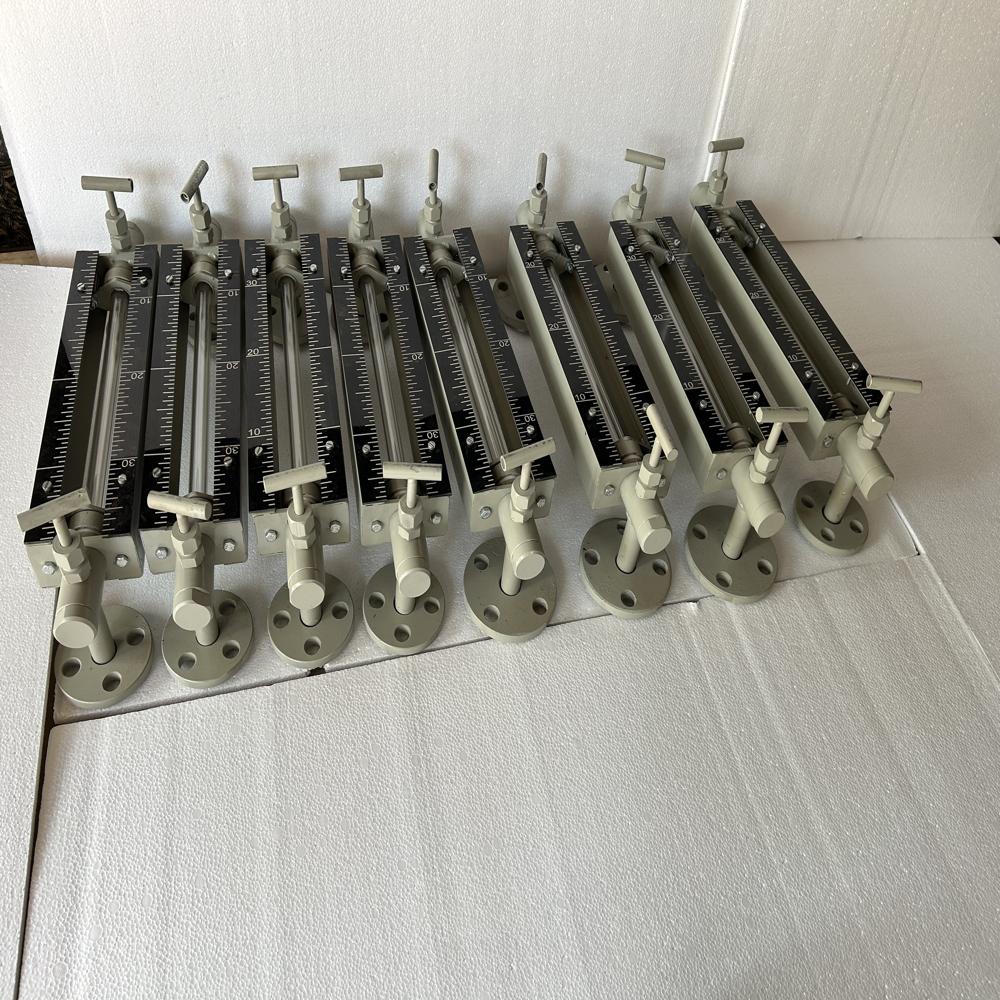

Glass Level Indicator

Product Description

POWERFLOW Make Heavy Duty Tubular Liquid Level Indicator is a Simple & reliable de vice for direct Reading in atmospheric or pressurized tank application. These indicators eliminates trouble giving threaded joints of conventional gauge glass cock as hazardous damage surrounding equipments & Also endanger human life.

Working Principle:

• The Gauge is fitted between two end blocks through gland packings The gauge is mounted parallel to tank so as to form a close loop causing tank liquid to seek its level in gauge. Guards are provided in the form of tie-rods / c - channels around the gauge to protect it from accidental blows. End blocks have built-in-isolating valve, drain valve and vent plug.

Specification:

• Connection: Flanged ASA 150# / Screwed/ T.C joint
• End Fitting: CS/S.S.304/S.S 316/P.P/FRP, PTFE Lined
• Protective Channel: C.S. Rectangle Channel box With Powder Coated/ S.S.304 / S.S 316 /P.P / FRP.
• Glass Tube: Heavy Walled Borosilicate H-19 / 16 / 25
• Packing: Te flon
• Valve: C.S./S.S.304/S.S.316/P.P.
• Range : 300 to 3000 mm(more than 3000 mm please consult factory)
